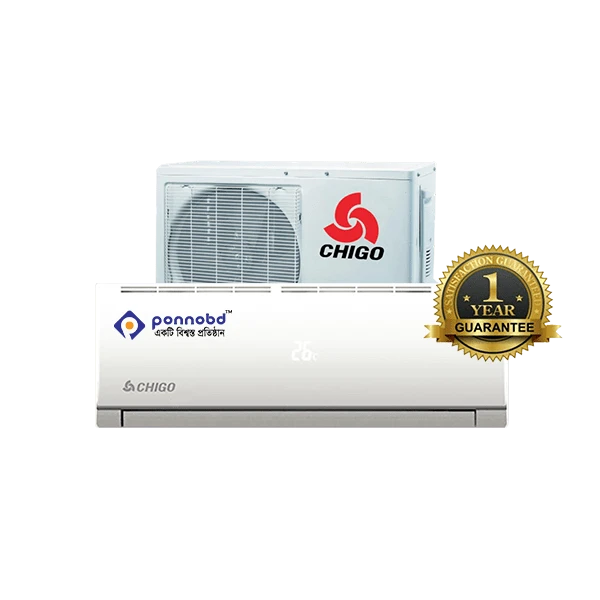

Chigo 1.5 Ton Split AC

AC Type Split AC
BTU 18000 BTU
Coverage 120 – 180 Sqft
Filter Type Auto Clean Filter
Air Control Freely Adjusted
Remote Control Yes

Call for details : +8801856111313

Chigo 1.5 Ton Split AC Specs:

Type of Unit				Mid wall Split Inverter
Model			Number	CS-51V3A-PB156AN/CS-61V3A-E2N
Rated volt and frequency			Ph-V-Hz	220-240/50
Cooling		Cooling capacity	W	5100 (2800 ~ 5500)
		Cooling power input	W	1585 (720 ~ 1880)
		Heating current input	A	6.9 (3.2 ~ 8.5)
		EER	w/w	3.22
Heating		Heating capacity	W	5200 (2900 ~ 5700)
		Heating power input	W	1525 (730 ~ 1920)
		Heating current Input	A	6.7 (2.8 ~ 8.7)
		COP	w/w	3.41
Max. input consumption			W	2800
Max. current			A	13.5
Compressor		Model		ATD141RDPA8JT
		Type (Rotary Piston)		Rotary
		Brand		Highly
Indoor	Fan Motor	Model		YDK-27-4 A6
		Power input	W	56
		Capacity	uF	1.8
		Indoor Fan Speed RPM	r/min	1300/1150/1000
		Indoor Fan Dia x Lenght	mm	102 x 707
		Indoor air circulation	m³/h	850
		Indoor noise sound pressure level	dB(A)	42~46
		Dimension (L x W x H)	mm	900 x 292 x 215
		Packing (L x W x H)	mm	983 x 377 x 300
		Net/Gross weight	Kg	14/17
Outdoor	Fan Motor	Model		YDK-40-6A 1 H2
		Power Input	W	103
		Capacity	uF	3
		Outdoor Fan Speed RPM	r/min	870/600
	Outdoor Fan	Dia x High	mm	415
		Tube pitch x row pitch x Fin	mm	2118.191.6
		Fin type	mm	Blue open window hydrophilic fin
		Tube outside dia and type	mm	Ø7.0×0.25+0.18 Internal thread tube
		Coil length x height x width	mm	798 x 546 x 36.38
		Noise Level	dB/(A)	55
		Dimension (L x W x D)	mm	850 x 295 x 605
		Packing (L x W x H)	mm	995 x 415 x 690
		Net/Gross weight	Kg	40/45
		Refrigerant Type /weight	g	R410a/1420g
		Design pressure (Hi/Low)	MPa	4.2/1.2
Refrigerant Piping		Liquid side/Gas side/Length	mm	6.35/12.7/3000 (1/4″+1/2″)
Refrigerant Piping		Max difference in the level	m	15/5
