Out Of Stock Call For Details : +8801856111313

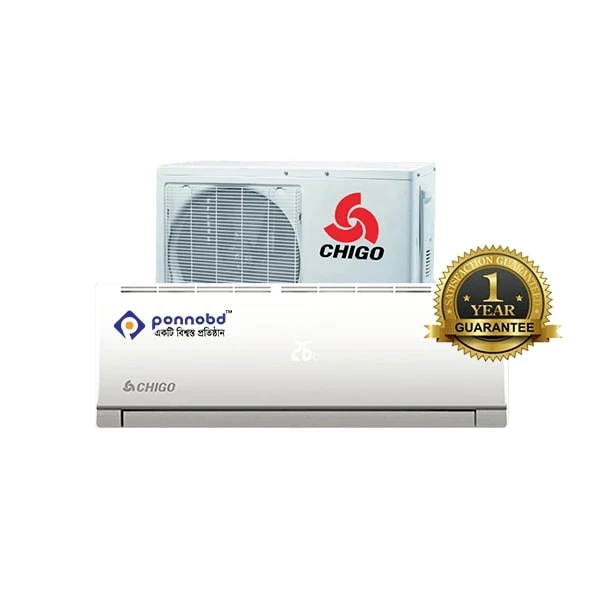

Chigo 1 Ton AC

12,000 BTU/HR
Coverage 100-120 sq ft
R410a
Ghost Display

Chigo 1 Ton AC is a new type of air conditioner that uses a novel cooling system. The machine uses water to cool the air, which makes it more environmentally friendly. Chigo 1 Ton AC is currently the smallest and most energy-efficient air conditioner on the market.

Type of Unit				Midwall Split Inverter
Model			Number	CS-35V3A-1C156AJ/CS-35V3A-Y4J
Rated volt and frequency			Ph-V-Hz	220-240/50
Cooling		Cooling capacity	W	3200 (1600 ~ 3950)
		Cooling power input	W	1040 (450 ~ 1400)
		Heating current input	A	4.7 (2.1 ~6.9)
		EER	w/w	3.08
Heating		Heating capacity	W	3500 (1550 ~ 4250)
		Heating power input	W	1020 (370 ~ 1270)
		Heating current Input	A	4.5 (1.7 ~ 6.2)
		COP	w/w	3.43
Max. input consumption			W	1750
Max. current			A	8
Compressor		Model		ASK103D53UFZ
		Type (Rotary Piston)		Rotary
		Brand		GMCC
Indoor	Fan Motor	Model		YDK-16-4 9
		Power input	W	40
		Capacity	uF	1
		Indoor Fan Speed RPM	r/min	1250/1100/850
		Indoor Fan Dia x Lenght	mm	92 x 593
		Indoor air circulation	m³/h	600
		Indoor noise sound pressure level	dB(A)	30~42
		Dimension (L x W x H)	mm	780 x 276 x 202
		Packing (L x W x H)	mm	960 x 367 x 305
		Net/Gross weight	Kg	10/12
Outdoor	Fan Motor	Model		D-280-25-8A/280-315
		Power Input	W	25
		Capacity	uF	/
		Outdoor Fan Speed RPM	r/min	850
	Outdoor Fan	Dia x High	mm	408 x 134
		Tube pitch x row pitch x Fin	mm	21**1.4
		Fin type	mm	Open window hydrophilic fin
		Tube outside dia and type	mm	Ø9.52 Internal thread tube
		Coil length x height x width	mm	657 x 500 x 22
		Noise Level	dB/(A)	53
		Dimension (L x W x D)	mm	715 x 235 x 540
		Packing (L x W x H)	mm	851 x 335 x 600
		Net/Gross weight	Kg	27/29
		Refrigerant Type /weight	g	R410a/940g
		Design pressure (Hi/Low)	MPa	4.2/1.2
Refrigerant Piping		Liquid side/Gas side/Length	mm	6.35/9.52/3000 (1/4"+3/8")
Refrigerant Piping		Max difference in level	m	15/5
